Corrugated box color Printing system: STARS PRINTING CH-2200c
1. Digital color carton printing industrial grade products
2. Personalized small batch customization one piece printing
3. Compared with traditional printing,printing saves time and effort
4. The ink color is bright and widely suitable for the packaging needs of different industries
5. The appearance is overall atmospheric and beautiful
| Model | CH2200-C | ||||
| Print type | Auto-pressed bubble inkjet technolog | ||||
| How to print | Single | ||||
| Color scheme | CMYK | ||||
| Number of channels | 4 | ||||
| Print speed | 40m/min 30m/min | ||||
| resolution | 300×600dpi or 300×1200dpi | ||||
| Ink type | Water-based ink | ||||
| Drying method | Dry naturally | ||||
| Wide feeding | 50-1300mm(Customizable) | ||||
| Print width | 218mm-656mm(Customizable) | ||||
| print area | Available in656mmCustomization in scope | ||||
| Dielectric thickness | 0.1-150mm | ||||
| Media type | Corrugated,whiteboard corrugated | ||||

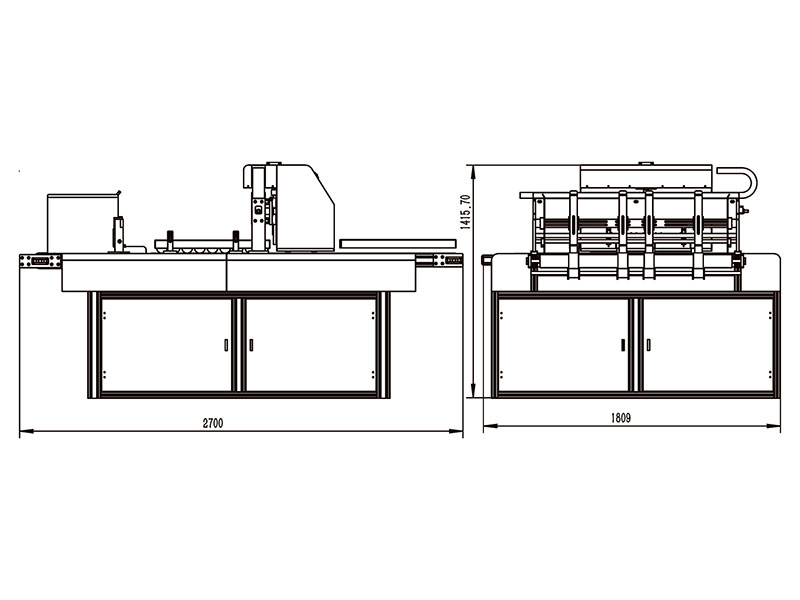

| Device size | 2700mm*1800mm*1450mm(Length,width and height) | ||||
| Power supply | 220V | ||||
| Power | 6KW | ||||
| Ambient temperature | 20-27℃ | ||||
| Ambient humidity | 65-80%relative humidity | ||||
| Guiding lever | |||||
| Feeding method | Automatic dispensing | ||||
| Production efficiency | 20000-30000/day | ||||
Note:All information contained in this document is for guidance purposes only and Negro reserves the right to modify it.
